EVO high beam lights. Light/switch/cable harness/mount. In pairs.

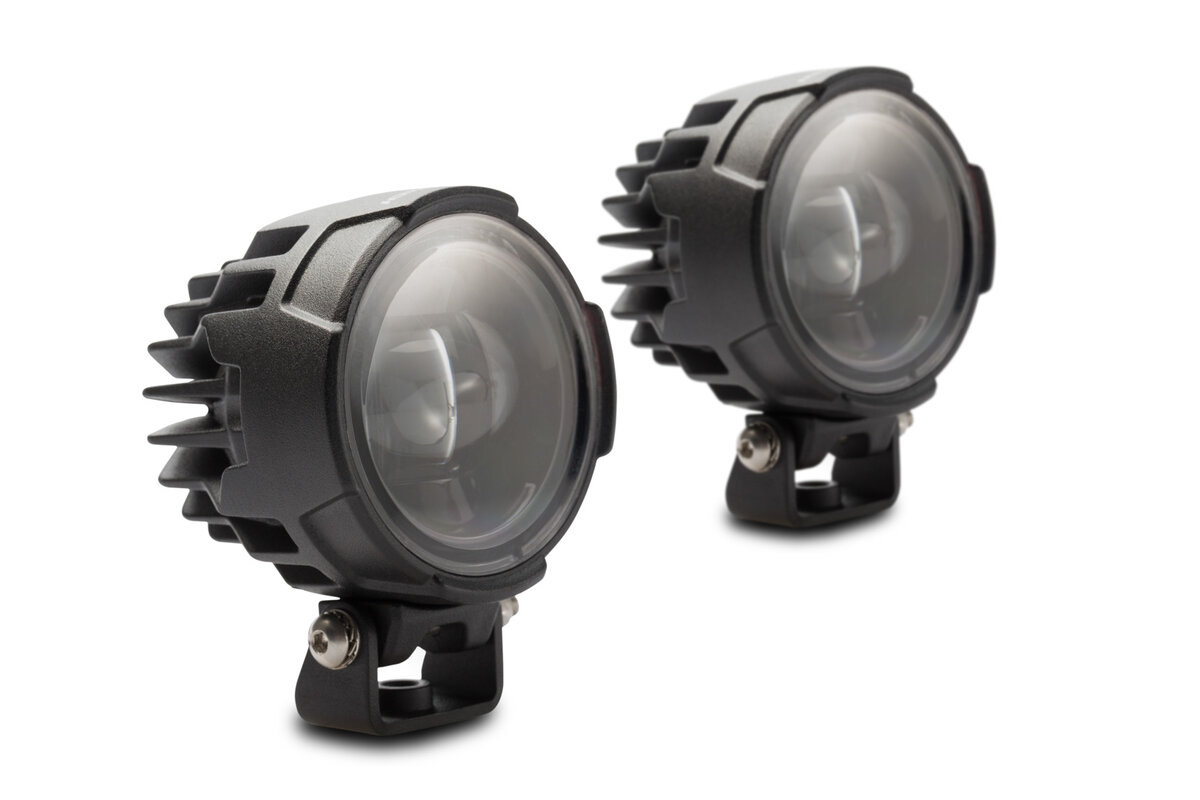

EVO high beam lights
Light/switch/cable harness/mount. In pairs.
292,44 incl. VAT
Immediately available
Art. No.: NSW.00.490.10101
EAN: 4052572054284
Total
Unit price:
Base price:
Quantity
Description
Bike check
Accessory
Reviews
Downloads
Query on the item?

EVO High beams

The highly concentrated light of the EVO high beams has a particularly wide range. This provides optimal lighting for the rider's view and ensures safety during on- or off-road riding. SW-MOTECH sought out a reliable partner for the development of the new EVO fog lights and relied on the expertise of a long-standing top manufacturer from the automotive sector. Development is focused on meeting the strictest quality standards while also maintaining a compact shape: the EVO high beams are resistant to water and dust, with an IP69 protective class rating. Powerful LEDs provide the best view, while wear-resistant housings ensure long life.

  • Trouble- and maintenance-free operation due to almost wear-free LED, considerably reduced energy consumption
  • Power output: 12 W
  • Luminous flux: 800 LM
  • ECE test mark: ECE R113 Rev.2
  • Highly concentrated beam with long-distance range
  • Compact size with a diameter of 7.1cm
  • Water- and dustproof (safety class: IP69)
  • Voltage: 12 V. Cable harness for easy connection to the motorcycle battery included in delivery, no change to motorcycle electric required
  • Splash-protected, blue glowing handlebar switch for comfortable operation (Protection class: IPX4)
  • Mounting points on all four sides
  • Installation on headlight clamps for crash bar (Ø 22, 26, 27, 28 mm) or bike-specific brackets

Included in delivery

  • 2 x EVO High beams
  • Mounting instructions
  • Mounting material

Details

  • Material: Aluminum
  • Surface: powder coated
  • Color: black

Note

  • Note that due to the curvature of the reflector the "TOP" mark must always be at the top.
  • Light clamps for crash bar and bike-specific mounts are available separately.

Required for mounting

  • Crash bar clamps or bike-specific light mount
