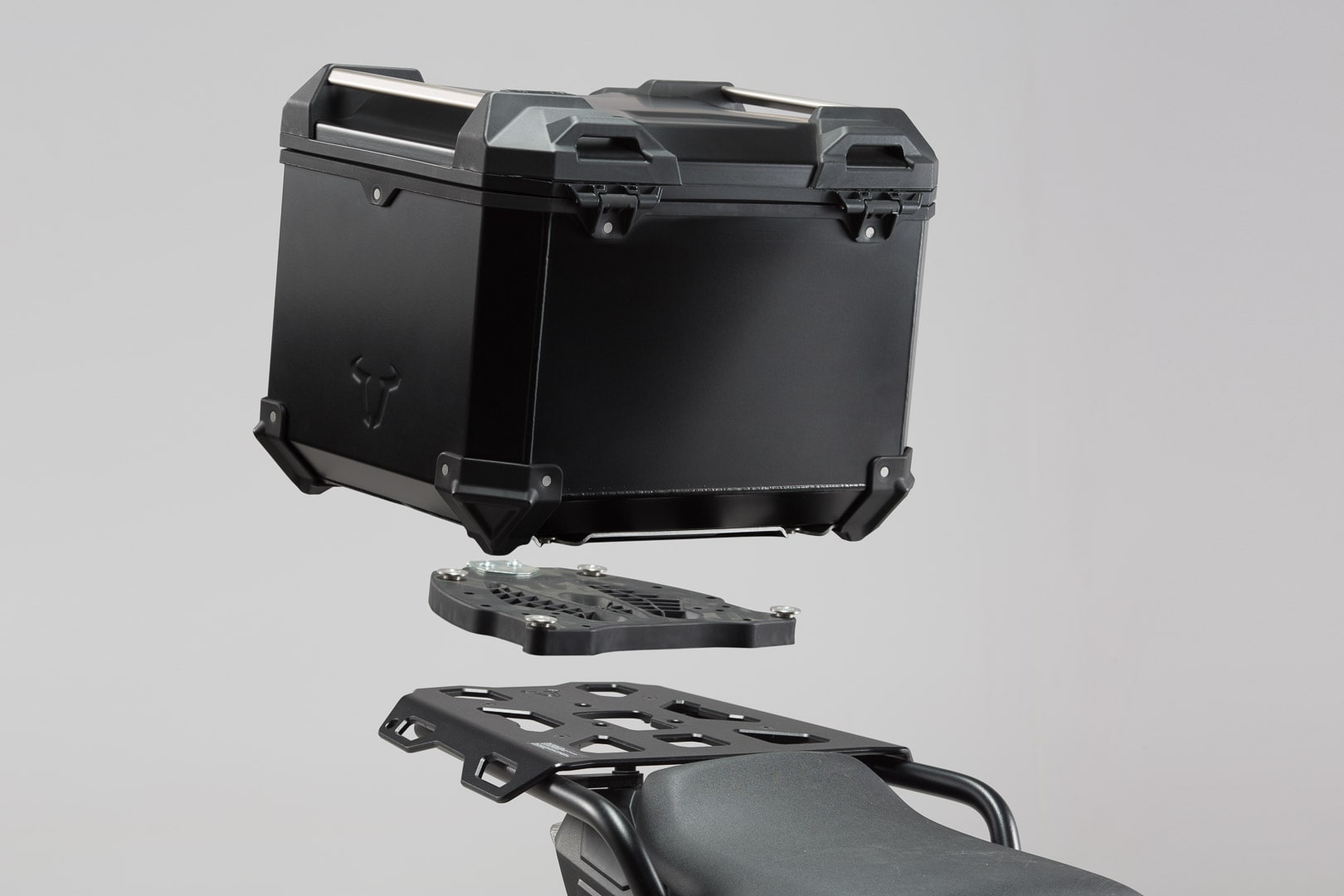

TRAX ADV Top case system
This complete solution contains everything required for installing a top case: TRAX ADV top case, bike-specific rack, adapter plate and TRAX lock set. And the next tour can start...because in the development of the TRAX ADV, stability and impermeability towards dust and water were just as important as easy handling. Whether on a off-road adventure, wanderlust tour or a short haul, the aluminum top case with a thickness of 1.5 millimeters proves itself in every challenge. The bike-specific rack and the adapter plate secure the top case: it is simply suspended and locked with the help of the lockable latch.

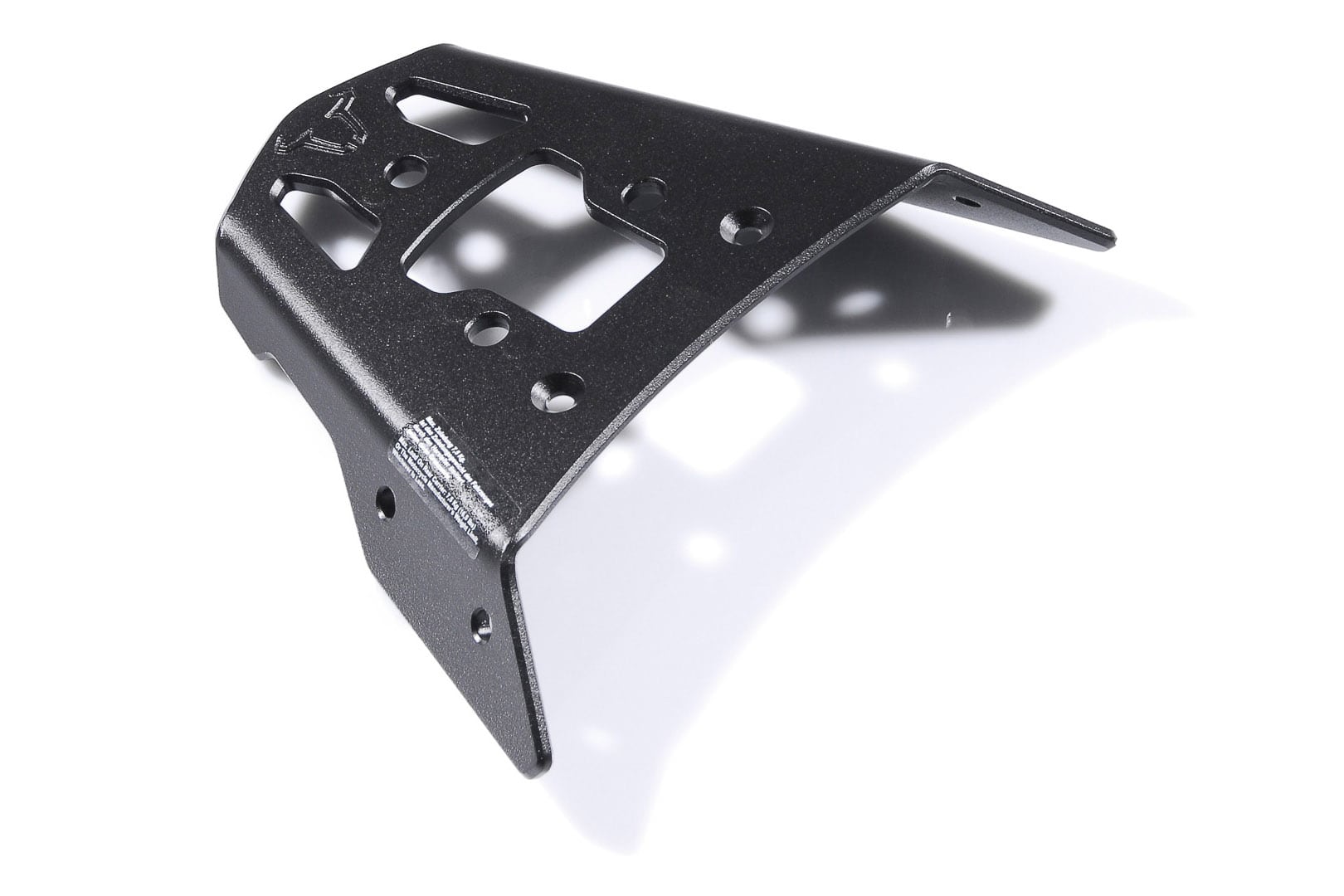

ALU-RACK Rack
- Bike-specific development and high-precision CNC production process ensure the best fit
- Perfectly suited to the motorcycle's profile
- Laser cut from aluminium alloy
- Effective corrosion protection thanks to its powder coated surface
- Can also be used in combination with PRO / EVO side carriers and TRAX side cases
- Material: Aluminum
- Material strength: 0,60 cm / 0.24 in
- Surface: powder coated
- Color: black
- Total Weight: appr. 1,4 kg / appr. 3.1 lb

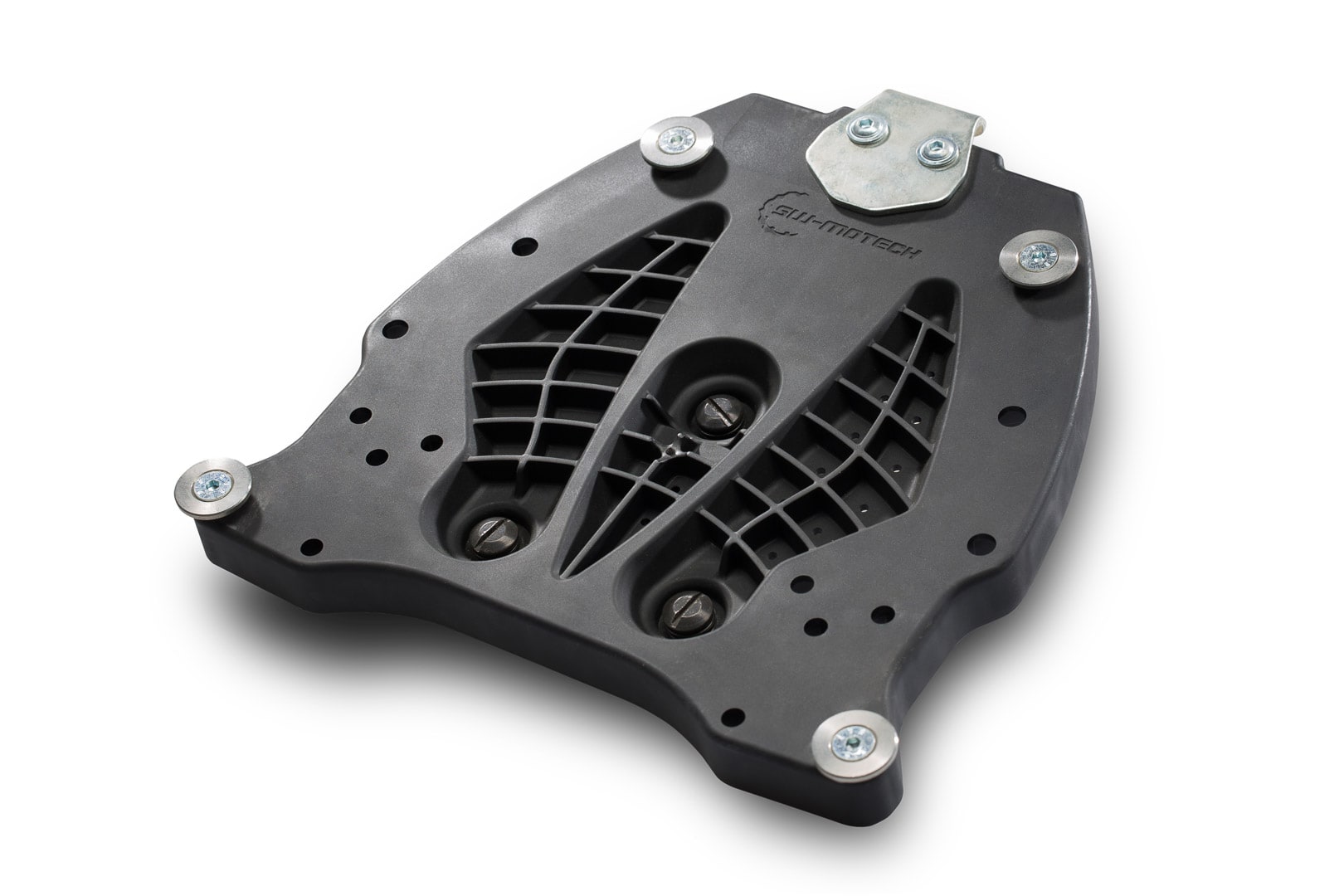

Adapter plate for ALU-RACK
- For TRAX top case models
- For attaching a top case to an ALU-RACK.
- QUICK-LOCK quick-release fasteners allow you to mount and dismount within seconds
- High strength thanks to reinforcement and three-point locking system
- Made from extremely sturdy plastic
- Material: Plastic
- Color: black
- Total Weight: appr. 0,8 kg / appr. 1.8 lb
TRAX ADV Top case
- Protection from corrosion and wear due to black powder coating
- Premium top case made from 1.5 mm-thick aluminum
- Hinged lid with lid limiter, stainless steel latch, sturdy carrying handles and integrated mounting points
- 100% water- and dustproof due to robotic welding and punch rivet technology
- Theft protection: Case lid and case can be locked when on the carrier
- High stability thanks to the visually appealing and functional embossed sheet metal
- Additional protection from corners made of glassfiber-reinforced polyamide
- Easy to clean surface
- A lock set with 2 identical locks is available as an option and included in delivery when purchasing a TRAX ADV top case system
- Material: Aluminum
- Material strength: 0,15 cm / 0.06 in
- Surface: powder coated
- Color: black
- Size: 41,0 x 34,0 x 33,0 cm / 16.1 x 13.4 x 13.0 in
- Total Weight: appr. 4,8 kg / appr. 10.6 lb
- Total Volume: 38,0 l
- Also available as a TRAX ADV top case system with ADVENTURE-RACK, adapters and lock set.

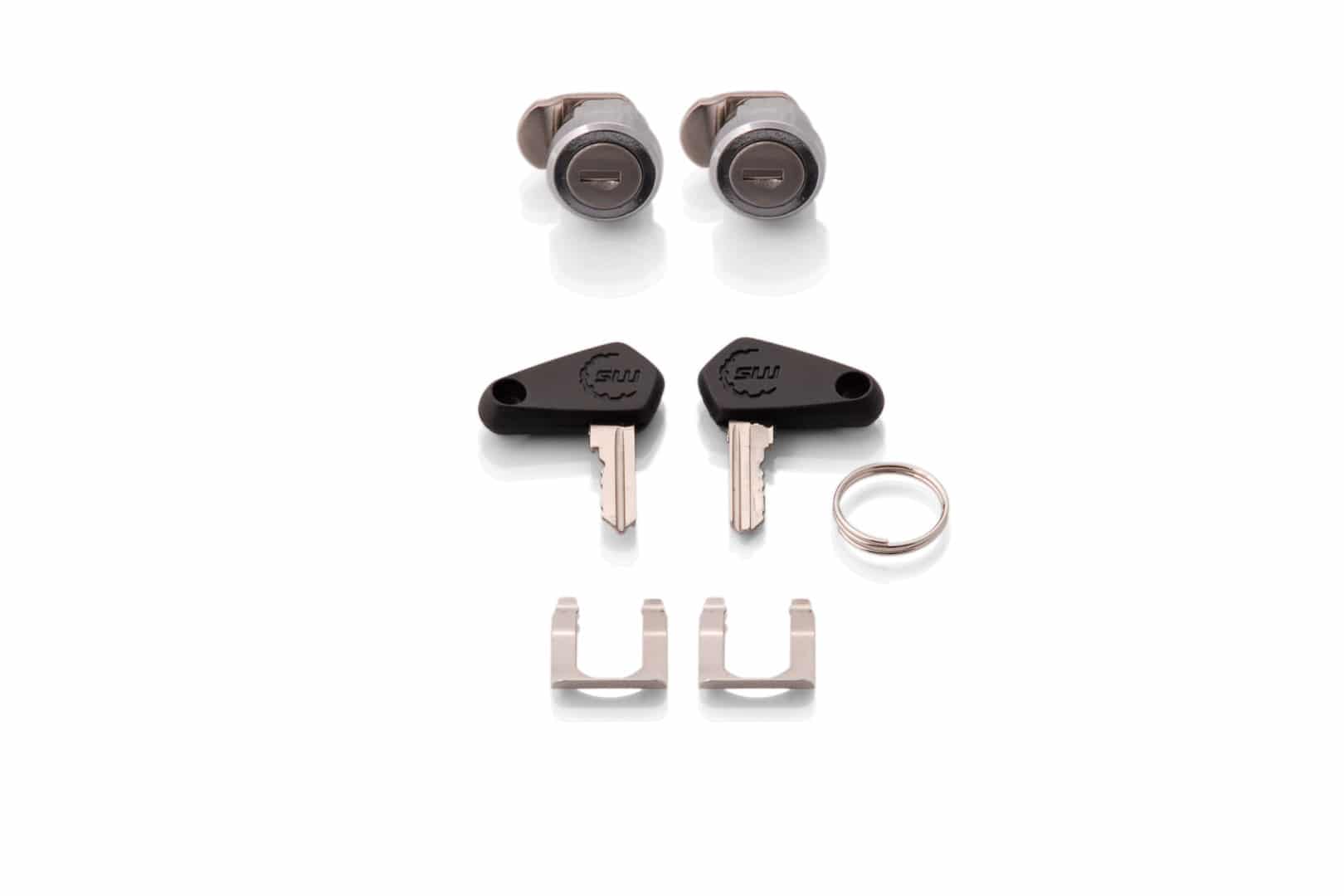

TRAX lock set
- Matching locks
- Compatible with side cases and top cases of the TRAX ION and TRAX ADV series as well as the TRAX Toolbox
- Color: silver
- Total Weight: appr. 0,1 kg / appr. 0.3 lb
Details
- Material: Aluminum
- Color: black
- Total Weight: appr. 8,9 kg / appr. 19.5 lb
- Total Volume: 38,0 l
